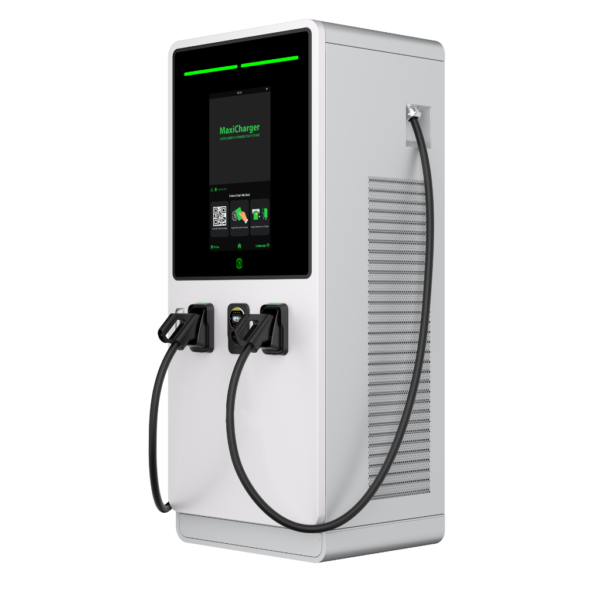

AUTEL Maxicharger DC Fast – สถานีชาร์จรถยนต์ไฟฟ้าแบบ DC Charger ขนาดกำลังไฟ 60-240 kW
AUTEL MaxiCharger DC Fast
- World First Triple Protection Technology, Safe Charging
- Intelligent Battery Diagnostic Technology, Longer Battery Life
- Compatible with 99.5% Electric Vehicles
- 240 kW Fast Charging with Dynamic Power Allocation
High Safety
Multi-layer Protection Technology
- Charger+Cloud BMS+VCI triple protection, real-time big data analysis, and multiple safety pre-warning, ensuring the charging environment is safe
- Health charging mode to prevent overcharge and increase battery safety
- EV battery real-time status monitoring to prevent thermal runaway
Long Lasting
Intelligent Battery Diagnostic Technology
- Longer battery life up to 20% by using our industry leading AI algorithm
- EV battery protection through health charging mode
Super Fast
Super-high Compatibility/240 kW Fast Charge
- Compatible with 99.5% EV models with aone-time successful charging rate up to 99%
- Deliver 100 km of range in 5 min with 240 kW charging power
- Peak conversion efficiency up to 96% with HiCharger DC fast charging module
High Convenience
Charging Management with Cloud System and APP
- Remote management via Autel Charge
- Remote update and diagnosis
- Self-developed SaaS platform management system
DC EV Charging Station
Input over/under voltage protection, output over-voltage protection, output over current protection, insulation detection protection, battery reverse connection protection, short circuit protection, charging pile over-temperature protection, charging gun over-temperature protection, access control protection, emergency stop protection, leakage protection, Overcharge protection.
DC Fast Charger
The rate power of AC/DC combo EVSE controller (CCS standard) is 120KW, and it can be used for rapid charging of electric vehicles. The functions include power conversion, charging control, PLC communication, energy measurement, charging billing. The intelligent multi-charge can provide dynamic distribution and allow several standards of electric vehicles to charge. It has the function of constant current or voltage charging, which is suitable for high voltage lithium system. With dustproof and waterproof functions (protection grade: IP54), it is suitable for outdoor operation. It can be set in parking lots, tram stations, service areas of expressways and supermarkets.
1.Big Size LCD Screen
Straightforward user interface with 7-inch panel,which displays the real-time charging status, including time, voltage, current, power and temperature.
2. Convenient operation
Easy installation with modular design,adapt to the indoor and outdoor environments. Ingress protection upto IP54.
3. Simultaneous charging output
Applicable to dual output and multiple output model,smart Charging model to adjust the power loading, and Load sharing to ensure the best utilization.
4. High intelligence
Powerful information collection, transmission and communication functions, compatible with OCPP back end office,support user authentication options.
5. Easy to install and use
The installation process is simple, payment is convenient and fast, and supports mobile application software or IC card swiping. Fully compatible with all EV in the market.
Specification
DC output connector:
| Charging mode | Mode 4: CCS2 |
| Output power | 60 kW / 120 kW / 180 kW / 240 kW |
| Output voltage | 150-1000 V |
| Output current | CCS2:Standard: 200A;
Optional 300A (nominal),
400 A (max) |
| Number of outputs | 2*CCS2 |
| Peak effciency | ≥ 96% |
AC input connector:
| Grounding system | 3P, N, PE |
| Input voltage | 3-phase 400V AC±15 % |
| Input frequency | 50 Hz |
| Power factor | ≥0.98 |
| Harmonic distortion | (THDi) ≤ 5% |
General Features :
| IP rating | IP54; IK10 |
| Operating altitude | 2,000 m |
| Operating temperature range | -35℃~+55℃ |
| Storage temperature range | -40℃~+70℃ |
| Mounting | Floor standing |
| Dimensions (H × W × D) | 1950×820×600mm (60kW/120kW)
1950×820×700mm (180kW/240kW) |
User Interface:
| Screen type | Type 27-inch LCD touchscreen
(15.6-inch LCD touchscreen optional) |
| Status display | LED/LCD/App |
| Connectivity | 4G, Wi-Fi, Ethernet |
| Communication protocols | OCPP 1.6J (OCPP 2.0.1 Upgradable) |
| User authentication | APP, RFID card, Credit card (optional) |
| User interface | Autel charging APP; Autel Charger Cloud |
| Software update | OTA updates via web portal |
Certification and Standards:
| Safety and Compliance | EN 61851-1, EN 61851-23, EN 61851-21-2
ISO 15118 Autostart |
| Certification | CE, EMC Class A, Eichrecchtskonform (Optional) |
| Warranty | 24 months, warranty extension possible |
