เครื่องชาร์จรถไฟฟ้ายี่ห้อ Wallbox รุ่น Copper SB ขนาด 7.4 kW (รวมติดตั้ง*)

คำอธิบาย

Wallbox Copper SB

With the Wallbox Copper SB you are assured of a very complete system, with a maximum load capacity of 22kW and the possibility to automatically manage your charging session records (transactions) via our supporting back office services. With Wi-Fi, Bluetooth or ethernet connection you always have a connection to the Wallbox Copper SB and you can easily manage it with the Wallbox app. It also offers the options Load Balancing and Panel Sharing. These are suitable options for EVs with different charging capacities. The charging capacity is determined by the on-board charger of the battery in your car and by your electric grid connection.

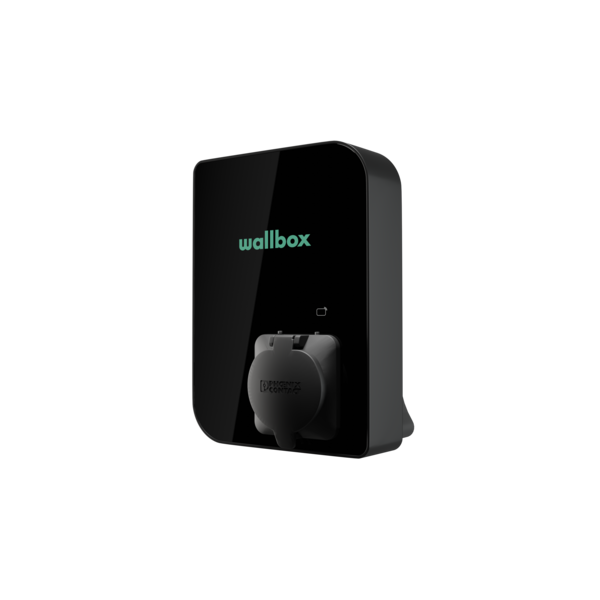

With integrated socket

Copper SB comes with an integrated socket that gives you maximum flexibility. Charge type 1 and type 2 cars using your cable. The station is available with up to 22 kW charging speed.

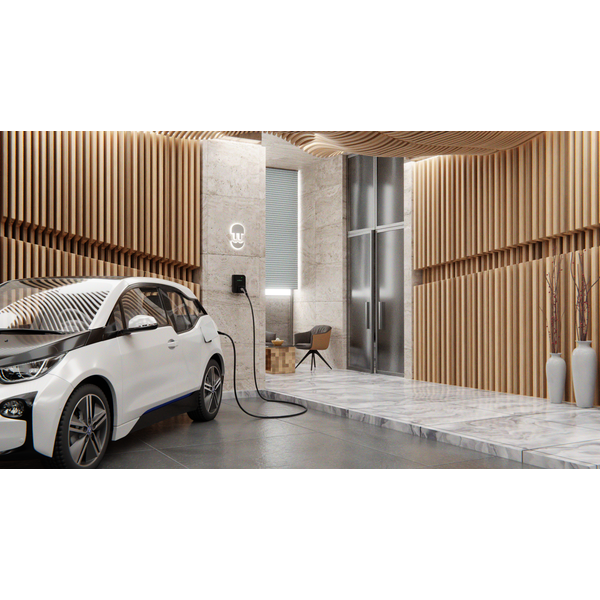

Mini 25x20cm charging station WALLBOX COPPER SB, connected, and adjustable power designed for home or office parking

WALLBOX charging station Wallbox Copper SB – 1.4 to 22kW – Bluetooth – Wi-Fi can be plugged to 1 or 3 phases. Its load current is instantaneously adjustable, anytime between 6A and 32A via the Wallbox application. It can therefore accommodate the available power of your home. His grip T2S lockable front will ensure a Secure charging in your electric car in Mode 3 .

With the Application Wallbox , you can connect your charging station to your Smartphone with Bluetooth or wifi. The application will allow you to manage the following settings:

• Connection to 1 phase or 3 phases
• Activate/deactivate remote load
• Adjust load power between 1.4 and 22kW

• Schedule the load the desired slots (to recharge in peak hours, for example)
• Review Historical consumption and the total cost of electricity consumed

Applicable to 1-phase and 3-phase connections

This smart Wallbox charging station is suitable for charging your car with a maximum of 3x32A (22 kW), but you can set this to values ​​between 6A and 32A so that this charging station can be perfectly applied to any grid connection and can deliver different charging capacities. With this you can charge any electric car!

The Wallbox Copper SB supports both 1-phase and 3-phase charging and is compatible with 1-phase and 3-phase grid connections. However, to be able to use more than 7.4 kW of power, you will need a 3-phase grid connection.

Supported charging speeds

• An electric car can drive an average of 5.5 km on 1 kWh of stored energy in the battery.
• The maximum current for this charging station is 32A with a maximum of 3 phases (400V). If this charging point is connected to the maximum capacity of 3 phase 32A, it can deliver approximately 22 kW continuous power.
• So if the car charges with the maximum 22kW, this means that it can charge 22 kWh (kilo Watt-hours) in one hour, which roughly corresponds to a range of 122 km (5.5 km x 22kWh).
• This means, the maximum charging speed of this charging point is 122 km / hour when distributing 22kW.

Please note that the actual charging speed also depends on the charging speed of the car’s onboard AC charger. Click here to find out which AC charger your car has.

Automated management of charging transactions

The use of OCPP (protocol) in the Wallbox Copper SB makes it possible to manage charging sessions/transactions with a connected back office system. This allows companies like leasing companies or employers with fleet cars to handle charging business comfortably. The Wallbox Copper is ideal for the business drivers who wants to keep track of their charging activity. The only thing that is needed besides the purchase and installation of the Wallbox Copper SB, is a subscription with a back office provider.

Soolutions can provide the connection to a supported back office system.

MyWallbox portal

Configure, monitor, and manage your Pulsar Plus from the myWallbox portal via a mobile app or web portal. The myWallbox portal gives you real-time information about consumption, charging time, and energy costs. You can set up the payload and lock (and unlock) the charging station to prevent abuse.

Wallbox app for smartphone and tablet

You can view and manage all device settings from your mobile phone or tablet via the Wallbox app. The app’s functions include setting the charging current, locking and unlocking the charging station, scheduling charging sessions (for example, at the time when the energy price is lower) and more

Smart charging

Smart Charging is an additional option that you can choose for your charging station and is available for most charging stations that Cable Soolutions offers. With Smart Charging you can charge your EV smartly and efficiently, while the one-off and annual costs for your connection to the electricity grid are minimized. Smart Charging offers 2 options:

• Load Balancing: ensures that the charging vehicle never exceeds the peak power of your grid connection. This prevents additional costs from your utility company. The charger uses an additional communication link with an existing meter or with additional sensors to be fitted. This can differ per manufacturer.
• Panel Sharing: allows you to connect multiple charging stations to one electrical connection and ensures that the available power of the entire electrical connection is smartly distributed, even if multiple vehicles are being charged When one of the vehicles is fully charged, the remaining charge capacity goes to the other vehicles that are still charging or connecting to the charger.

Smart Charging ensures that your charging station always makes smart use of the available charging capacity. By efficiently charging your electric car with a Smart Charging station, you can save up to hundreds of euros per year.

Dynamic Load Balancing

The Power Boost function ensures that you use the maximum residual current within your current electricity connection to charge your car as quickly as possible. And all this without you having to worry about whether your stop or the main fuse will fly out. Is your washing machine switched on? Then the car loads less quickly. In practice, the charging station is in constant contact with a smart module in the meter cupboard. This module continuously monitors how much power is available at that time. All electrical appliances in the house have priority over the charging station. The remaining capacity is available for charging the car. This ensures safe and optimal use of the power connection and overload is prevented.

Key Features

• Enable Plug & Play or RFID card – your choice – adjustable on Wallbox web portal
• Setting the charging intensity between 6 and 32A, adjustable via App
• Connect via Bluetooth and WiFi: access to Wallbox App and Web Portal Wallbox
• Connection to one phase or three phases
• CC Leakage detector 6mA
• Terminal block for rigid cables 10mm²
• IP55 protection and IK08: resistant to heavy rain and shocks
• Plug: Type 2S. Socket with safety shutter
• Wall mounting kit included

คุณสมบัติหลัก

– เป็นเครื่องชาร์จรถไฟฟ้า Wallbox EV Charger Mode 3
– สามารถชาร์จรถยนต์ไฟฟ้าทุกรุ่นที่เป็นหัวแบบ Type 2 ได้
– ติดตั้งง่าย ผลิตภัณฑ์จะถูกส่งไปยังลูกค้าด้วยเครื่องมือการติดตั้งที่เกี่ยวข้อง ผู้ใช้สามารถติดตั้งเครื่องชาร์จที่บ้านได้โดยใช้ drd ที่มีการล็อคด้านข้าง การล็อคที่ชาร์จบนแบ็คเพลนการติดตั้งอย่างแน่นหนาสามารถป้องกันการโจรกรรมได้
– ประกอบด้วยชิปอัจฉริยะ สามารถซ่อมแซมปัญหาการชาร์จเล็กน้อยในขณะที่ชาร์จ เมื่อเกิดข้อผิดพลาดไฟจะกระพริบในรูปแบบต่างๆเพื่อระบุปัญหาที่แตกต่างกัน

วิธีใช้
A. วิธีการเริ่มการชาร์จ: 1. ตรวจสอบให้แน่ใจว่าเครื่องชาร์จเชื่อมต่อกับพลังงานอย่างดี, 2. ใช้สายชาร์จ Mode 3 EV เพื่อเชื่อมต่อเครื่องชาร์จกับ EV, 3. กดปุ่มบนอุปกรณ์ชาร์จเพื่อเริ่ม
B. วิธีหยุดการชาร์จ: 1. เครื่องชาร์จจะหยุดโดยอัตโนมัติเมื่อการชาร์จเสร็จสิ้น, 2. ถอดสาย Mode 3 EV ออกจากเครื่องชาร์จและ EV ทั้งสองด้าน, 3. คุณสามารถหยุดการชาร์จได้โดยกดปุ่มในกรณีฉุกเฉิน
C. วิธีการทราบสถานะการชาร์จ: สภาพการทำงานไฟ LED แสดงสถานะ พลังงาน (สีเขียว) ค่าใช้จ่าย (สีเขียว) ความผิดพลาด (สีแดง) เชื่อมต่อพลังงาน ON OFF OFF, การชาร์จปกติเปิดเป็นปิด, การชาร์จผิดปกติเปิดปิดอยู่, การชาร์จเสร็จสมบูรณ์เมื่อปิดเครื่อง

ข้อมูลเพิ่มเติม

น้ำหนัก	23 กก.
ขนาด	12 × 23 × 56 เซนติเมตร
ขนาดกำลังไฟ	3.7 kW, 7.4 kW, 11 kW, 22 kW
ความยาวสาย	5 เมตร, 7 เมตร, 10 เมตร
